Quick Answer

If your doorbell suddenly stops working, the most common culprit is a disrupted power supply. This usually means a tripped breaker, a failing transformer, or a disconnected wire at the button or chime unit. Homeowners can often diagnose and fix these issues with basic tools and a careful approach to electrical safety. Start by checking your electrical panel for a tripped breaker, then move to inspect the doorbell transformer and wiring for any obvious faults before considering component replacement.

The Problem

You push the doorbell button, but instead of the familiar chime, there’s nothing but silence. A non-functioning doorbell is a common nuisance that can leave you wondering if guests are waiting unnoticed. While it might seem like a complex electrical issue, many doorbell problems are surprisingly simple to diagnose and fix with a few basic tools and a bit of patience. The core problem usually lies in one of three areas: the power supply, the doorbell button, or the chime unit itself. Understanding how these components work together is the first step toward restoring your doorbell's melodious greeting.

How It Works

Most wired doorbells operate on a low-voltage electrical circuit, typically 10 to 24 volts AC. This low voltage is crucial for safety and efficiency. The system consists of three primary components: the transformer, the doorbell button, and the chime unit.

The Transformer: This is the heart of your doorbell's power system. Located typically near your main electrical panel, in an attic, or mounted to a junction box in your basement or utility closet, the transformer converts your home's standard 120-volt AC household current down to the much lower 10-24 volts AC required by the doorbell. It's a small, rectangular or cylindrical device with two terminals for the low-voltage wires. If the transformer fails or loses power, the entire doorbell system goes dead.

The Doorbell Button: When you press the doorbell button, you complete a circuit. Inside the button, there are two terminals connected to the low-voltage wires coming from the transformer and going to the chime. Pushing the button momentarily bridges these terminals, allowing electricity to flow to the chime.

The Chime Unit: The chime unit contains an electromagnet and plungers. When electricity flows from the button, the electromagnet is energized, pulling a plunger to strike a metal bar, producing the distinctive 'ding-dong' sound. Most chimes have two solenoids for the two distinct notes – one for the front door and often a single note for a secondary door.

When a doorbell isn't working, it usually means that somewhere along this low-voltage path, the circuit is interrupted or a component has failed. This could be due to a tripped breaker cutting power to the transformer, a faulty transformer, a broken wire, a sticky doorbell button, or a damaged chime unit.

Step-by-Step Fix

1. Safety First — Before doing any electrical work, always turn off the power at the main electrical panel.

• This is critical, even for low-voltage systems. While the doorbell circuit itself is low voltage, the transformer is connected to your home's 120V system. Locate the breaker that controls the doorbell circuit (it might be labeled 'Lights,' 'General Purpose,' or 'Furnace' if not specifically 'Doorbell'). Flip it to the 'OFF' position.

2. Check the Breaker or Fuse — Diagnose the simplest power issue.

• Go to your home's electrical panel. Look for a tripped circuit breaker. It will be in an 'OFF' or middle position. Flip it firmly to the 'OFF' position, then back to 'ON'.
• If you have an older fuse box, check for a blown fuse. A blown fuse will have a broken filament. Replace it with a fuse of the same amperage.
• If this doesn't work: The breaker might trip again, indicating a short circuit somewhere in the system. Disconnect the transformer from the 120V circuit (after turning off the breaker again) and then reset the breaker. If it holds, the issue is within the low-voltage doorbell circuit.

3. Inspect the Doorbell Button — Often the first point of failure.

• Carefully remove the screws holding the doorbell button in place. Gently pull the button away from the wall to expose the wiring.
• Look for: Loose or corroded wires, a broken button mechanism, or dirt/debris obstructing the contacts. If wires are loose, tighten them with a small screwdriver. If they are corroded, gently clean them with fine-grit sandpaper.
• Briefly touch the two wires together. If the chime rings, the button is faulty and needs replacement. If not, the problem lies elsewhere.
• If this doesn't work: Replace the doorbell button anyway if it shows visible signs of damage or wear. They are inexpensive and a common failure point.

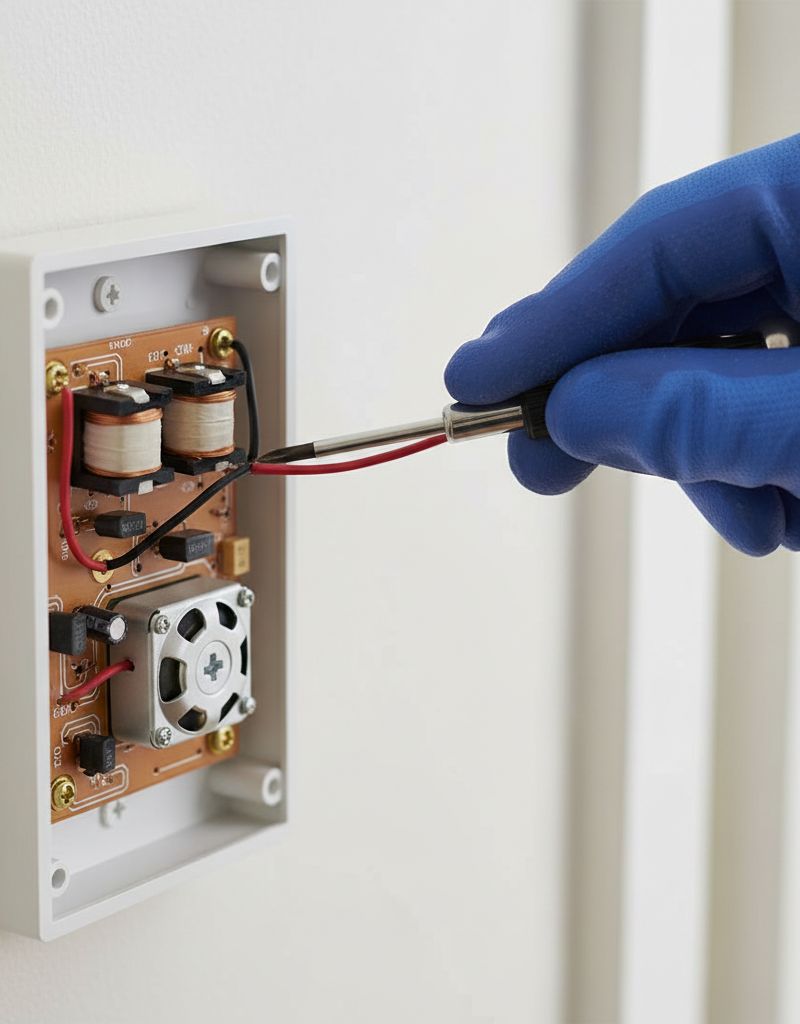

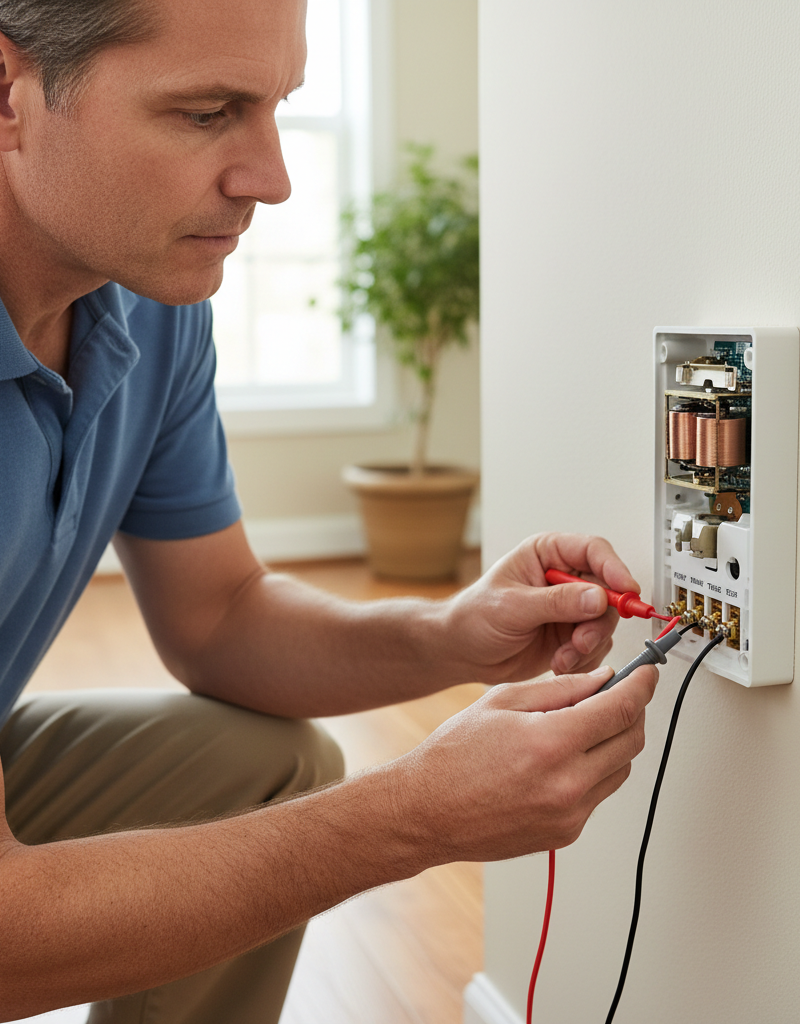

4. Examine the Chime Unit — The sound-maker might be silent due to internal issues.

• Locate your chime unit (typically in a hallway, living room, or near the front door). Remove its cover.
• Look for: Loose wires, dust and debris, or visible damage to the electromagnets or plungers. Use a can of compressed air to clear out any dust.
• Ensure all wires are securely attached to their terminals. If a plunger is stuck, try gently wiggling it free. Sometimes, the chime mechanism gets gummed up with dirt or lint.
• Safety Note: Do NOT touch internal components while power is on, even though it's low voltage. Always disconnect power first.
• If this doesn't work: If the chime hums faintly but doesn't strike, it might not be receiving enough voltage, pointing to a transformer issue. If it's completely silent, the chime or transformer is likely faulty.

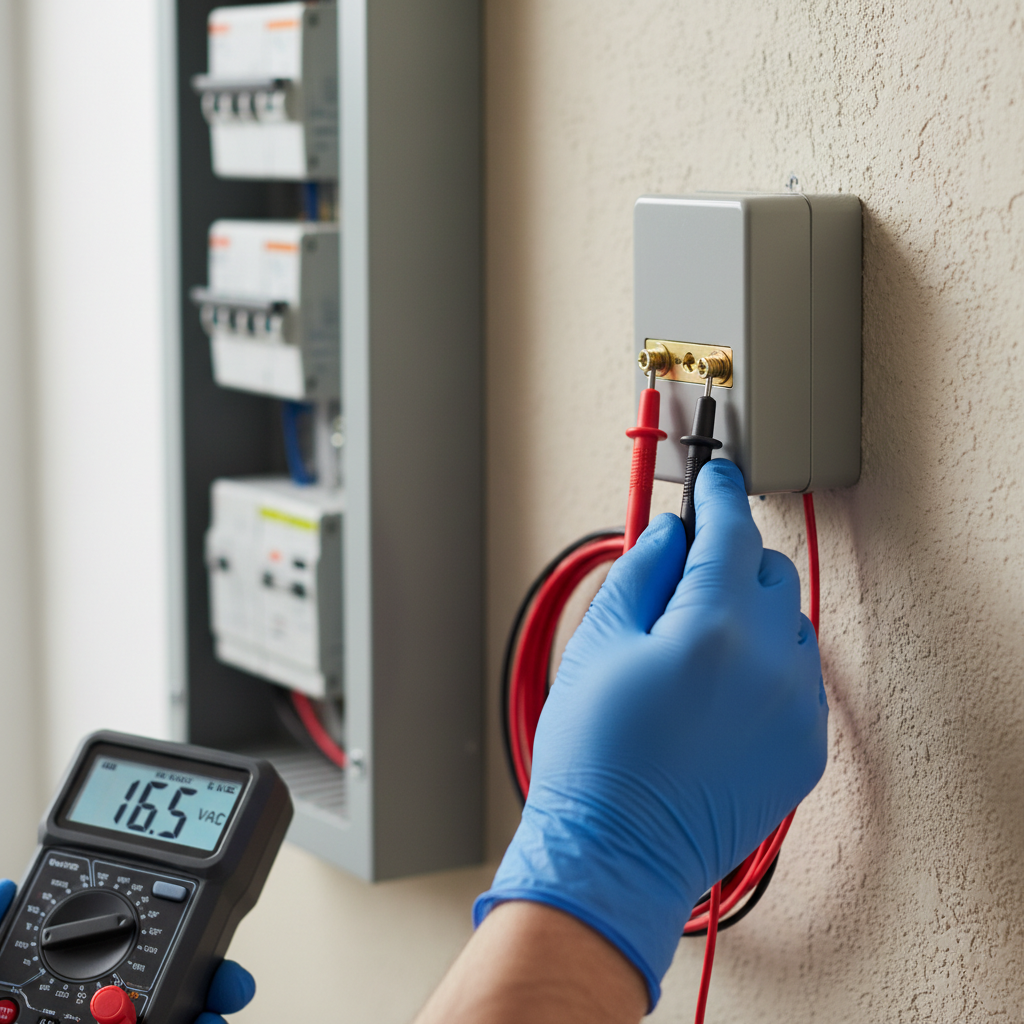

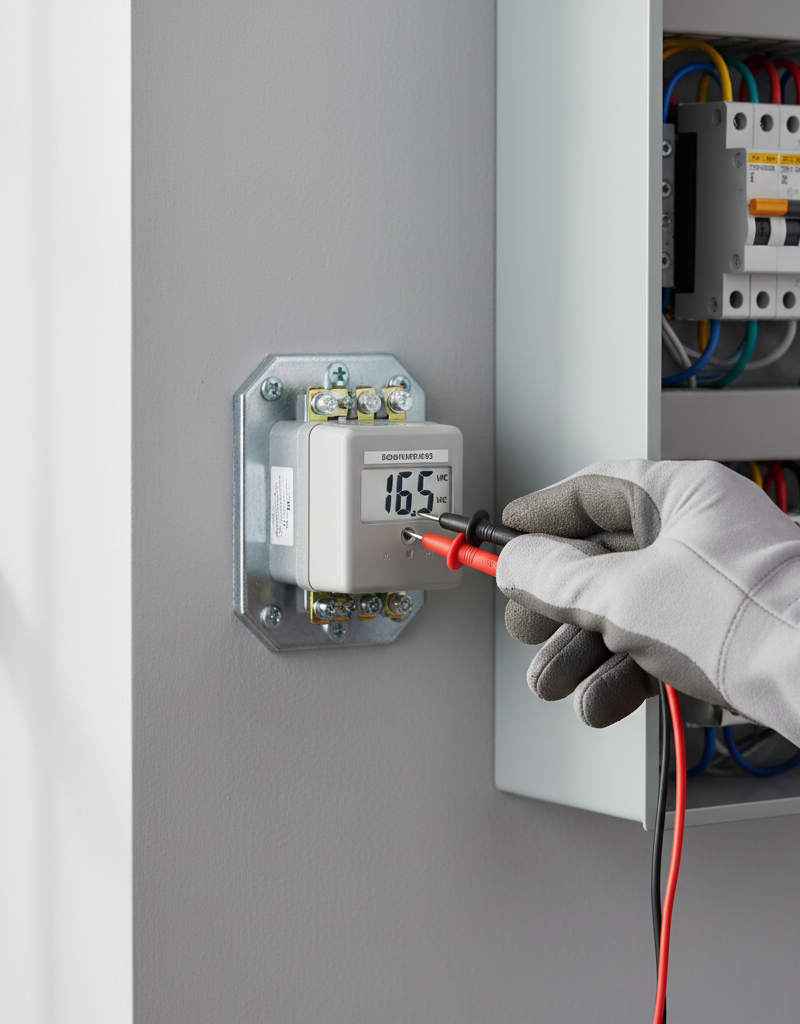

5. Test the Transformer's Output — Verify the power source is supplying voltage.

• Locate the doorbell transformer. It's usually a small, metal box mounted to a junction box near your electrical panel, furnace, or in the attic/basement.
• With the power ON (exercise extreme caution, as the primary side of the transformer has 120V), set your multimeter to AC voltage mode (V~).
• Place one probe on each of the low-voltage terminals of the transformer. A functioning transformer should read between 10 and 24 volts AC.
• Safety Note: Be very careful not to let your probes touch the 120V input wires or any other metal surfaces that could cause a short. Use insulated gloves.
• If the reading is 0V or significantly low: The transformer is likely faulty and needs replacing, or it's not receiving 120V input. Turn off the power and check the 120V wiring to the transformer. If the 120V input is present, but the output is low/zero, replace the transformer.
• If this doesn't work: If the transformer shows good voltage, the problem is a break in the low-voltage wiring between the transformer and the button, or between the button and the chime.

6. Check Wiring Continuity (Advanced) — Trace the current path to find breaks.

• Turn off power at the breaker.
• Disconnect both wires from the doorbell button. Using a multimeter set to continuity mode (or resistance/ohms), touch one probe to each wire. You should get an open circuit reading (infinite resistance). If you get continuity, there's a short in the wires.
• Go to the chime unit. Disconnect the wires there too. Label them to remember which goes where (e.g., 'Trans' for transformer, 'Front' for front door button).
• Take the wire from the transformer and one of the button wires (e.g., 'Front'). At the chime, connect these two wires temporarily. At the button location, test for continuity between the corresponding two wires. If you have continuity, that section of wire is good. Repeat for the other wire from the button to the chime.
• This process helps isolate breaks in the low-voltage wiring. If there's no continuity, you'll need to trace the wire path, often through walls, which can be challenging and may require professional help.

7. Consider a New Chime Unit — If all else fails, the chime might be internally broken.

• If the transformer is providing adequate voltage and the wiring seems intact, the chime unit itself could be the issue. Internal components can wear out or become damaged.
• Purchase a new chime unit with the same voltage requirements as your existing transformer. Disconnect the old chime (with power off!), wire in the new one, and test.
• If this doesn't work: At this point, if you've methodically ruled out the button, transformer, and wiring, it's time to call in a licensed electrician. There might be a hidden issue you're missing.

Common Causes

• Tripped Circuit Breaker: This is the most frequent and easiest fix. An overload or short elsewhere on the circuit can trip the breaker powering the doorbell transformer.
• Faulty Transformer: Over time, transformers can wear out, overheat, or experience internal failures, leading to reduced voltage output or complete failure.
• Damaged Doorbell Button: The button is exposed to the elements and frequent use. Wires can come loose, contacts can corrode, or the internal mechanism can break.
• Loose or Corroded Wiring: Low-voltage wires can become brittle, break, or corrode at connection points, especially in damp environments or due to pest damage.
• Dust and Debris in Chime: The internal mechanism of the chime can get clogged with dust, lint, or insect nests, preventing the plungers from striking the tone bars.
• Damaged Chime Unit: The electromagnets or plungers within the chime can fail due to age, impact, or electrical surges.

Common Mistakes

• Forgetting to Turn Off Power: Even low-voltage wiring can be part of a 120V circuit at the transformer. Always de-energize before working on electrical components to prevent shock or equipment damage.
• Guessing the Problem: Randomly replacing parts without proper diagnosis can waste time and money. Follow a systematic troubleshooting approach.
• Ignoring the Transformer: Many DIYers focus only on the button and chime, overlooking the transformer as a common failure point that is often out of sight.
• Incorrect Voltage Matching: When replacing parts, ensure the new doorbell button, chime, or transformer matches the voltage requirements of the rest of the system. Mismatched components can cause premature failure.
• Loose Connections: When reattaching wires, ensure they are securely fastened to their terminals. A loose connection is a common cause of intermittent or complete failure.
• Using Too Much Force: Doorbell buttons and chime covers are often plastic and can break easily if forced. Use gentle prying and unscrewing techniques.

Cost & Time Breakdown

Tips & Prevention

• Annual Inspection: Once a year, give your doorbell system a quick check. Press the button to ensure it rings crisply. Briefly remove the chime cover to vacuum out dust.
• Keep Button Clean: Gently wipe down your doorbell button periodically to prevent grime buildup that can affect its operation.
• Check Wiring: If you notice any exposed or frayed wires around the button or chime, turn off the power and secure or replace them promptly. Exposed wires are a hazard and can lead to short circuits.
• Correct Transformer Sizing: If you ever upgrade your doorbell to a smart doorbell, ensure your transformer can provide adequate voltage andVA (Volt-Ampere) rating. Many smart doorbells require 16-24V and higher VA than older mechanical systems.
• Pest Control: If your transformer is in an attic or basement, ensure those areas are sealed to prevent pests from chewing on wires or nesting in the chime unit.

When to Call a Professional

While most doorbell issues are manageable for the average homeowner, there are specific situations where calling a licensed electrician is the safest and most efficient course of action. If, after systematically troubleshooting, you still cannot identify or resolve the problem, it's time to call a pro. This is especially true if you are uncomfortable working with electricity, even low voltage, or if you suspect the issue involves the main electrical panel wiring to the transformer. If you detect burning smells, see sparks, or if a circuit breaker repeatedly trips even after you've disconnected components, it indicates a more serious electrical fault that requires immediate professional attention. Additionally, if the wiring is concealed within walls or ceilings and you suspect a break that would require extensive drywall removal, an electrician may have specialized tools to locate the break with less invasive methods. Don't risk electrical shock or further damage to your home's electrical system for a doorbell repair.
