Quick Answer

When an electrical outlet mysteriously stops working despite its corresponding circuit breaker being in the 'on' position, the issue isn't always with the breaker itself. Often, the problem lies with a tripped GFCI or AFCI outlet further up the circuit, loose wiring connections, a faulty outlet receptacle, or even an internal safety mechanism within an appliance's surge protector that's gone unnoticed. Safely diagnosing this requires a systematic approach to pinpoint the exact failure point in the electrical pathway.

The Problem

Imagine plugging in your phone charger or a lamp, only to find the outlet completely dead, yet when you check your electrical panel, the breaker for that circuit is clearly in the 'on' position. This common scenario can be incredibly frustrating and even confusing for homeowners. It suggests power should be flowing, but somewhere along the line, it's being interrupted. This isn't just an inconvenience; a dead outlet can disrupt daily routines, especially if it's in a critical area like a kitchen or bathroom, or if it's powering essential equipment. Understanding why this happens without a visible breaker trip is the first step toward restoring power and preventing future occurrences.

How It Works

To understand a dead outlet with a live breaker, you need a basic grasp of how a residential electrical circuit functions. Your home's electrical system receives power from the utility company, which is then distributed through your main electrical panel. Inside this panel, circuit breakers act as safety devices, protecting individual circuits (groups of outlets, lights, and appliances) from overcurrents and short circuits. When an overload or short occurs, the breaker 'trips,' cutting power to protect your wiring and devices. Each circuit usually runs from the breaker, through your walls, connecting to outlets, switches, and light fixtures in a particular sequence.

Crucially, some outlets themselves have built-in safety features. Ground Fault Circuit Interrupter (GFCI) outlets are common in wet areas like kitchens, bathrooms, garages, and outdoors. They monitor the current flowing out to an appliance and back to the panel. If there's an imbalance (indicating current leaking to ground, potentially through a person), the GFCI trips instantly, cutting power to itself and any downstream outlets on the same circuit. You'll recognize a GFCI by its 'TEST' and 'RESET' buttons. Similarly, Arc Fault Circuit Interrupter (AFCI) outlets or breakers protect against dangerous electrical arcs that can cause fires. These are often found in bedrooms and living areas in newer homes and can also trip to cut power to downstream outlets, even if the main breaker is on.

Another key concept is 'daisy-chaining.' Many electrical outlets on a single circuit are wired in a series, meaning power flows from the main breaker to the first outlet, then to the second, and so on. If there's an interruption at any point in this chain – such as a loose wire at an upstream outlet or a tripped GFCI/AFCI – all subsequent outlets on that same branch will lose power, even if the main circuit breaker remains on. This understanding is vital for effective troubleshooting.

Step-by-Step Fix

1. Safety First — Before touching any wiring, always ensure the power is off.

• Crucial Safety: Locate your main electrical panel and identify the breaker for the affected circuit. Switch it to the 'OFF' position. If unsure, switch off the main breaker for your entire home. Confirm power is off with a non-contact voltage tester before proceeding. Never work on live electrical circuits.

2. Check for Tripped GFCI or AFCI Outlets — The most common hidden culprit.

• Look for Buttons: Systematically check all outlets in the room and adjacent rooms, especially in kitchens, bathrooms, garages, and outdoors, for outlets with small 'TEST' and 'RESET' buttons. These are GFCI outlets. In bedrooms or living rooms, you might also find AFCI outlets.
• Reset Procedure: Press the 'RESET' button firmly on any GFCI or AFCI outlet you find (you may hear a click). If it pops back out, there's still a fault, and you'll need to investigate further. If it stays in, test the original dead outlet. If this restores power, you've found the issue. Remember, one GFCI can protect several 'downstream' outlets.
• If This Doesn't Work: There might be a hidden GFCI in a basement, garage, or even behind an appliance. Expand your search.

3. Test with a Different Appliance — Rule out the appliance as the problem.

• Simple Check: Plug a small, known-working appliance (like a lamp or phone charger) into the dead outlet. Then plug the same appliance into a known-working outlet to confirm it functions correctly. This quickly determines if the problem is the outlet or the original appliance.

4. Examine the Outlet for Visible Damage — Signs of internal failure.

• Visual Inspection: Carefully remove the cover plate (with the power OFF!). Look for discoloration, burn marks, melted plastic, or loose wires. These are signs of overheating or a short circuit.
• Warning: If you see significant burning, call a licensed electrician immediately. This indicates a serious electrical fault.

5. Check Wiring Connections (Advanced DIY) — Loose wires are a common cause of intermittent power.

• Power OFF: Absolutely ensure the circuit breaker is OFF and verify no power with a voltage tester.
• Remove Outlet: Gently pull the outlet from its electrical box. Inspect each wire connection. Wires should be secure to the terminals (either wrapped around screws tightly or firmly inserted into back-stab holes).
• Tighten/Rewire: If wires are loose or appear corroded, carefully remove them and strip about 3/4 inch of insulation if needed. Reconnect them securely, tightening screw terminals clockwise. Avoid using back-stab connections if possible; screw terminals are more reliable. Always match wire colors: black (hot) to brass screws, white (neutral) to silver screws, bare copper or green (ground) to the green screw.
• If This Doesn't Work: Consider checking the connections at the previous outlet in the circuit, as a loose connection there could interrupt power to subsequent outlets.

6. Test the Outlet for Power — Confirming the presence (or absence) of voltage.

• Power ON (Briefly): With the outlet pulled out of the wall (but wires securely connected), temporarily turn the breaker back ON. Use extreme caution.

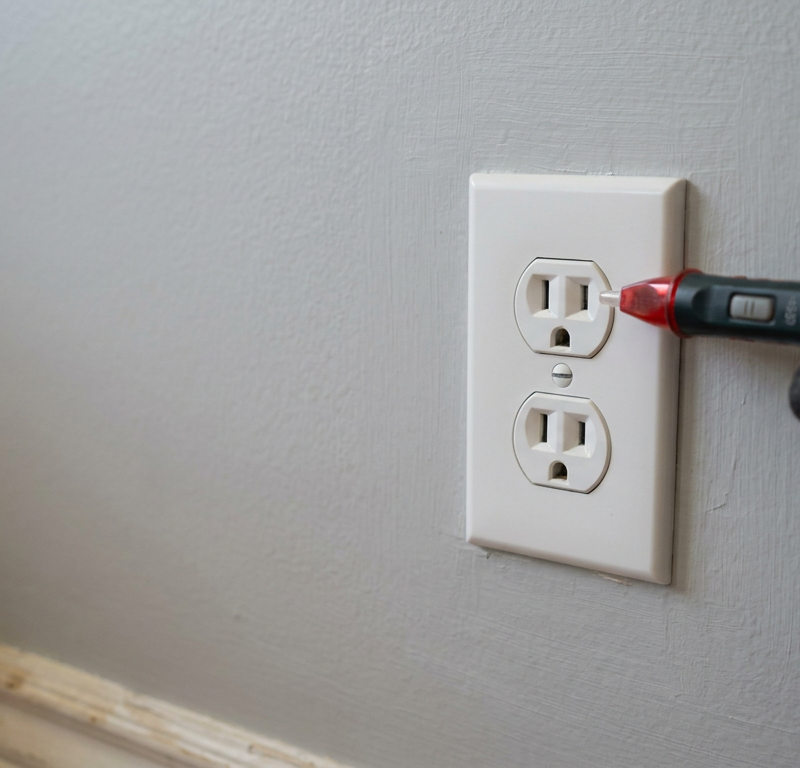

• Use a Multimeter/Voltage Tester: Carefully touch the probes of a multimeter set to AC voltage (or the tips of a non-contact voltage tester) to the hot (black wire terminal/shorter slot) and neutral (white wire terminal/longer slot) screws. A reading of approximately 120V indicates power is reaching the outlet. If you have no reading, the problem is upstream.
• Power OFF Immediately: Once you have your reading (or lack thereof), immediately turn the breaker OFF.
• If Power is Present: If the outlet itself has power but doesn't work when an appliance is plugged in, the outlet receptacle is likely faulty and needs replacement.

7. Consider a Faulty Outlet or Surge Protector — The outlet's internal mechanism might be damaged.

• Outlet Failure: Over time, the internal contacts within an outlet can wear out, corrode, or get damaged, preventing power from reaching the appliance. If testing confirms power to the outlet but not from it, replace the outlet.
• Surge Protector/Power Strip: If the appliance was plugged into a surge protector, check if the surge protector itself has a tripped internal breaker or a 'reset' button. Sometimes these can trip independently of the main house breaker.

8. Replace the Outlet (If Necessary) — A straightforward fix once diagnosed.

• Power OFF: Ensure the circuit is DEAD using your voltage tester.
• Disconnect: Unscrew and carefully disconnect all wires from the old outlet, noting which wire goes to which screw.
• Connect New Outlet: Connect the wires to the new outlet, matching black to brass, white to silver, and ground to green. Ensure wires are securely tightened.
• Mount & Test: Gently push the new outlet into the box, screw it in, attach the cover plate, and turn the breaker back on. Test with a known-working appliance.

Common Causes

• Tripped GFCI/AFCI Outlet: This is by far the most frequent issue. A ground fault (GFCI) or arc fault (AFCI) can occur without tripping the main breaker, killing power to several downstream outlets. They are designed to trip quickly for localized protection.
• Loose Wire Connections: Over time, vibrations, temperature changes, or improper initial installation can cause wires to loosen at the outlet terminals, in the electrical box, or at the upstream outlet. A loose hot wire will result in no power.
• Faulty Outlet Receptacle: Outlets wear out. The internal spring contacts can lose tension, corrode, or break, preventing current flow even if the wires leading to the outlet are live. This is common in frequently used outlets.
• Damaged Wiring: Though less common, wiring within the walls can be damaged by nails, screws, pests, or age, causing an open circuit that stops power transmission.
• Internal Breaker in Surge Protector: If the appliance was plugged into a power strip or surge protector, it might have its own tripped breaker, which is easily overlooked.
• Hidden Junction Box Issue: Occasionally, a loose connection in a junction box located elsewhere on the circuit could be the culprit, though these are typically inaccessible without opening walls.

Common Mistakes

• Not checking all GFCI/AFCI outlets: Homeowners often only check the obvious GFCI in a bathroom, forgetting that a GFCI in a garage, basement, or even an outdoor outlet can control interior outlets.
• Assuming the breaker is the problem: Just because the breaker is ON doesn't mean it's not a circuit-related issue. The problem is almost always in the circuit itself, not the breaker, in this scenario.
• Not turning off power completely: Working on live circuits is extremely dangerous and can lead to electric shock or serious injury. Always verify power is off with a voltage tester.
• Ignoring signs of damage: Overlooking scorch marks, melted plastic, or burnt smells when inspecting an outlet or wiring can lead to a fire hazard if power is restored without addressing the underlying damage.
• Using back-stab connections: While convenient, the 'back-stab' holes on the back of outlets are less secure than screw terminals and are more prone to loosening over time. Always use screw terminals for a more reliable connection when replacing an outlet.
• Not testing other outlets on the same circuit: If one outlet is dead, others on the same circuit might also be affected, providing clues as to where the interruption is occurring (e.g., if multiple outlets downstream from a GFCI are dead, you know the GFCI is the source).

Cost & Time Breakdown

Tips & Prevention

• Regular GFCI Testing: Test your GFCI outlets monthly by pressing the 'TEST' button. The 'RESET' button should snap out. Then press 'RESET' to restore power. If it doesn't trip, the GFCI unit is faulty and should be replaced.
• Avoid Overloading Circuits: Be mindful of how many high-wattage appliances you plug into a single circuit. Overloading can prematurely wear out outlets and wiring, leading to intermittent issues or actual breaker trips.
• Use Screw Terminals: When installing or replacing outlets, always use the screw terminals for wire connections instead of the less reliable back-stab holes.
• Inspect Outlets Periodically: Occasionally check outlets for signs of wear, such as loose plugs, discoloration, or cracks. Warm outlets can indicate a loose connection or overload.
• Proper Appliance Maintenance: Ensure appliance cords are in good condition and not frayed, as damaged cords can cause ground faults or shorts.
• Map Your Circuits: Take the time to label your electrical panel clearly, indicating which breaker controls which rooms or specific outlets. This makes troubleshooting much faster.

When to Call a Professional

While many dead outlet issues can be resolved by a savvy homeowner, there are definitive signs it's time to call a licensed electrician. If you've methodically checked all GFCI/AFCI outlets, confirmed your appliance works elsewhere, and still have no power, especially after inspecting the outlet's wiring, the problem likely lies deeper within the circuit. This could involve damaged in-wall wiring, a faulty connection in a junction box you can't access, or a more complex issue with the breaker panel itself. Additionally, if you notice any burning smells, scorch marks beyond minor discoloration, sparks when testing, or repeatedly tripping GFCI/AFCI outlets even after resetting, these are immediate red flags requiring professional attention to prevent fire hazards. Attempting to troubleshoot complex internal wiring can be dangerous and could lead to further damage or electrical shock if not handled by an expert.
