Quick Answer

A non-functioning doorbell often points to one of three culprits: a faulty doorbell button, a dead transformer, or a chime unit issue. Begin by ensuring the button isn't stuck. If it isn't, listen closely to the chime unit for a faint hum, which indicates power. If no hum, the transformer might be the problem. Many fixes involve simple wiring adjustments or component replacements that homeowners can handle with basic tools and a multimeter.

The Problem

There's nothing quite as frustrating as a dead doorbell. Guests knock politely (or not so politely) while you remain blissfully unaware inside. Beyond the inconvenience, a non-working doorbell can also be a minor security concern, as it's often the first indicator of someone at your door. The good news is that most doorbell issues aren't complex and rarely require an expensive service call. Often, the problem lies with a readily accessible component or a minor wiring issue that can be diagnosed and resolved with a few simple steps and tools you likely already own.

How It Works

Understanding how a standard wired doorbell operates is key to troubleshooting it effectively. It's a low-voltage electrical circuit, typically ranging from 8 to 24 volts AC (alternating current). Here's a quick breakdown of the components and their roles:

• Transformer: This is the heart of the system, reducing your home's standard 120-volt AC household current to the low voltage needed for the doorbell. It's usually a small, rectangular box mounted near your main electrical panel, in the attic, or inside a junction box in the basement or utility room. It has two sets of wires: primary (high voltage from your house) and secondary (low voltage to the doorbell system).
• Doorbell Button: This is a simple momentary switch. When you press the button, it momentarily completes the low-voltage circuit, allowing electricity to flow. It contains two terminals where the wires from the transformer and to the chime are connected.
• Chime Unit: This is the part that makes the sound. Inside, it typically has two electromagnets. When the circuit is completed by pressing the button, these electromagnets are energized, striking a metal bar (or bars) to produce the chime sound. Most chime units have three terminals: one labeled 'Trans' (for transformer), one labeled 'Front' (for the front doorbell button), and sometimes 'Rear' (for a second button, if present).
• Wiring: Thin, low-gauge wires (often 18-gauge or 20-gauge) connect these components in a series. Power flows from the transformer, to the doorbell button, then to the chime, and finally back to the transformer to complete the circuit.

When you press the button, you close the circuit, allowing the low-voltage current to activate the chime unit. If any part of this circuit is interrupted – a broken wire, a faulty button, a dead transformer, or a damaged chime mechanism – the doorbell won't ring. Troubleshooting involves systematically checking each component and its connections to pinpoint where the circuit is failing.

Step-by-Step Fix

Before you begin, always turn off the power to the doorbell circuit at your main electrical panel. Doorbell circuits are low voltage, but it's always safest to work with dead circuits, especially when dealing with the transformer's high-voltage side. Identify the breaker, usually labeled 'doorbell' or 'chime,' or sometimes a general 'lighting' or 'general purpose' breaker. If unsure, turn off the main breaker for your home.

1. Check the Doorbell Button — The simplest culprit

Your doorbell button is exposed to the elements and frequent use, making it a common point of failure.

• Visual Inspection: Look for signs of damage: cracks, corrosion, or a button that feels 'stuck' or doesn't spring back.
• Jiggle Test: Gently jiggle the button. If it rings intermittently, the internal contacts might be dirty or worn.
• Bypass Test: Carefully remove the two small screws holding the doorbell button in place. Be gentle to avoid stripping them. Disconnect the two wires from the terminals. Briefly touch the two bare ends of the wires together.
  • If the chime rings: The button is faulty and needs replacement.
  • If the chime doesn't ring: The problem lies elsewhere in the system. Reconnect the wires, secure the button, and move to the next step.

2. Inspect the Chime Unit — Dust, dirt, or loose connections

The chime unit can accumulate dust or suffer from loose connections, preventing it from working.

• Remove the Cover: Gently pry off the chime unit's cover. It's usually snapped on or held by small clips.
• Clean and Inspect: Use a can of compressed air or a soft brush to remove any dust, cobwebs, or debris from the internal components, especially the plungers and metal bars. Look for loose wires at the 'Trans,' 'Front,' and 'Rear' terminals. Gently tighten any screws that appear loose.
• Listen for a Hum: With the power back on, listen closely to the chime unit. A faint 60 Hz hum (like a soft buzzing) indicates that power is reaching the chime from the transformer.
  • No hum: The transformer or the wiring from the transformer to the chime is likely the issue.
  • Hum present, but no chime when button pressed: The chime unit itself might be faulty, or the wiring from the button to the chime is compromised.

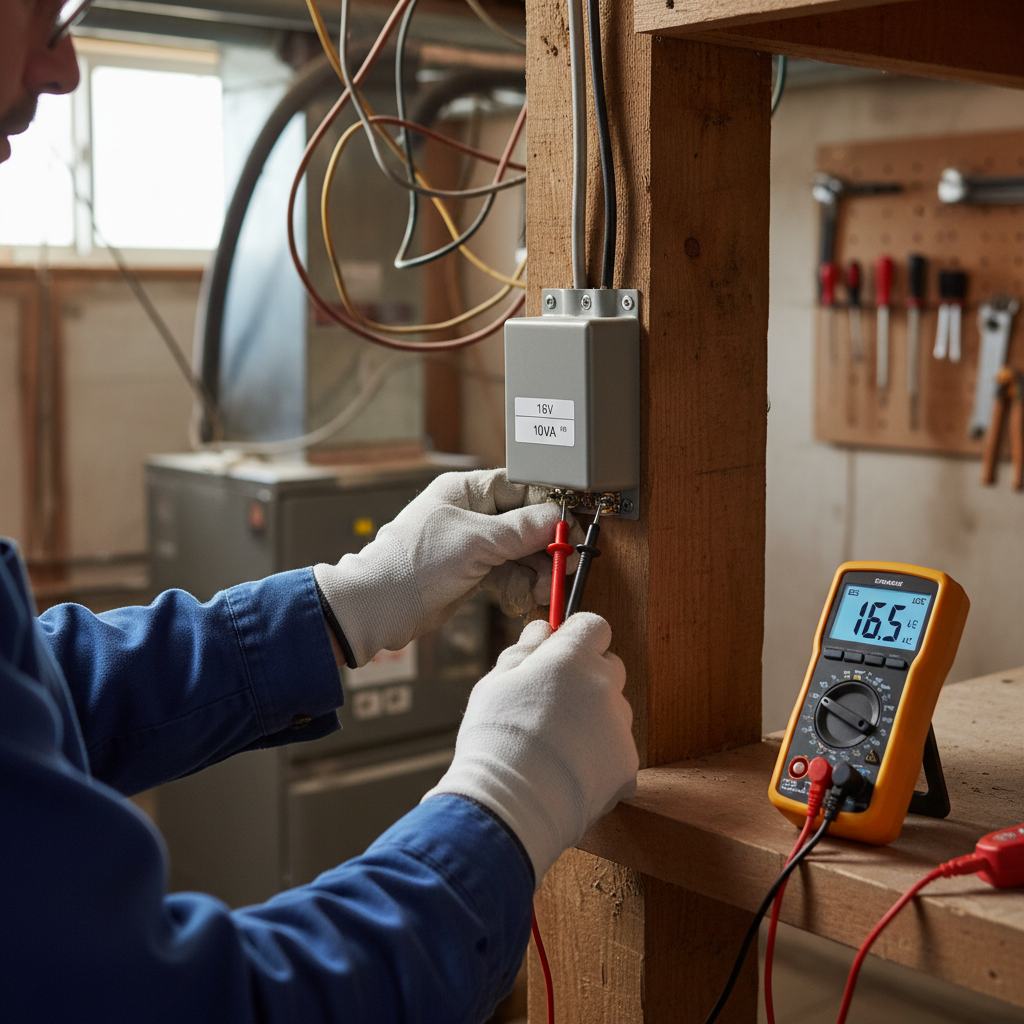

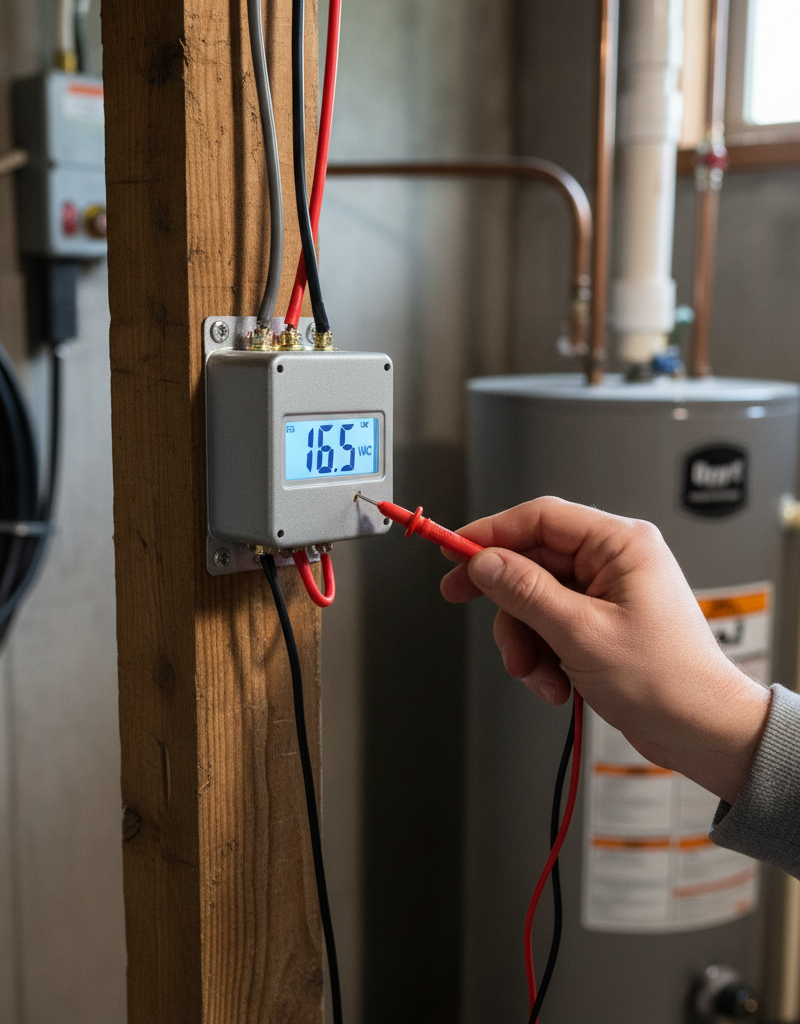

3. Test the Transformer (Voltage Check) — The power source diagnosis

This step requires a multimeter to check if the transformer is supplying power correctly. Ensure power is ON again for this test.

• Locate the Transformer: Common locations include near the main electrical panel, in basement rafters, utility closets, or the attic, often mounted on a junction box.
• Set Multimeter: Set your multimeter to measure AC voltage (VAC) to a range suitable for low voltage (e.g., 20V or 'Auto-Ranging').
• Take Readings: Carefully touch one multimeter probe to each of the two low-voltage screw terminals on the transformer (the ones with the thinner wires running to the doorbell system).
  • Expected Reading: You should get a reading between 8 and 24 VAC (typically 16VAC).
  • No Reading (0V) or very low reading: The transformer is likely dead and needs replacement. Turn off the power at the main breaker before attempting replacement.
  • Correct Voltage Reading: The transformer is working. The problem is either a broken wire between the transformer and the chime/button, or a faulty chime unit. Proceed to the next step.

4. Check Wiring Continuity (Advanced) — Hunting for breaks or shorts

If the transformer is good and the chime hums (or the button bypass worked), but the doorbell still doesn't ring, there might be a break in the low-voltage wiring. This step involves checking continuity with your multimeter.

• Turn off Power: Crucial for this step.
• Isolate Wires: At the chime unit, disconnect the wires from the 'Trans' and 'Front' terminals. At the doorbell button, disconnect both wires. You'll now have four loose wire ends (two at the chime, two at the button).
• Test for Continuity:
  • From Transformer to Chime: Take one wire that comes from the transformer to the chime (usually connected to the 'Trans' terminal at the chime). Go to the transformer and find the corresponding wire exiting its low-voltage terminals. Use your multimeter's continuity setting (looks like a speaker symbol or an ohm symbol). Touch one probe to each end of this single wire. It should beep or show a very low resistance (near 0 ohms). Repeat for the other wire from the transformer to the chime (if applicable, or to the button).
  • From Button to Chime: Take one wire from the doorbell button. Trace it back to the chime unit (it connects to the 'Front' terminal). Test for continuity between these two points.
  • Short Circuits: Also test for continuity between the two wires from the transformer (with them disconnected from all components) – you should not have continuity. If you do, there's a short circuit somewhere in the wire pair, requiring replacement of that section.
• No Continuity: If a segment shows no continuity, that wire is broken and needs to be replaced. This often means running a new low-voltage wire, which can involve fishing wires through walls, depending on your setup.

Common Causes

• Faulty Doorbell Button: The most common culprit. Contacts inside wear out, or the button gets stuck due to repeated use or exposure to weather.
• Dead Doorbell Transformer: Transformers can burn out over time due to age, power surges, or constant demand. If the chime unit receives no power, this is a prime suspect.
• Loose Wiring Connections: Vibrations, expansion/contraction, or improper initial installation can lead to wires loosening at the button, chime, or transformer terminals.
• Dirty/Obstructed Chime Unit: Dust, insect nests, or small debris can impede the plungers within the chime unit, preventing them from striking the tone bars.
• Damaged Low-Voltage Wiring: While less common, wires can be gnawed by rodents, accidentally cut during renovations, or degrade over very long periods, leading to a break in the circuit.

Common Mistakes

• Forgetting to Kill the Power: Always turn off the circuit breaker for the doorbell system before working on any components, especially the transformer. While doorbell circuits are low voltage, the transformer's primary side is connected to 120V household current, posing a shock risk.
• Immediately Replacing the Transformer: Many DIYers jump straight to replacing the transformer, when the issue is often a much simpler (and cheaper) fix like a bad button or loose wire. Diagnose thoroughly first.
• Not Checking the Button First: The doorbell button is the most exposed and used component. It should always be the first thing you check before digging into the wiring or other internal components.
• Ignoring the Hum: Listening for the faint hum at the chime unit is a crucial diagnostic step. It can quickly tell you if power is reaching the chime, narrowing down whether the transformer or the chime/button is the issue.
• Assuming Bell Wire is High Voltage: Doorbell wiring uses thin, low-voltage wires. While it's good practice to treat all wiring with respect, confusing it with high-voltage household wiring can lead to unnecessary fear or incorrect troubleshooting.
• Over-tightening Terminal Screws: The small screws on doorbell buttons and chime units are fragile. Overtightening can strip the screws, damage the terminals, or cut the delicate low-voltage wires.

Cost & Time Breakdown

Tips & Prevention

• Regular Cleaning: Periodically wipe down your doorbell button and gently clean the chime unit's interior to prevent dust and debris buildup. This is especially important for outdoor-exposed buttons.
• Check for Wire Damage: If you're doing any work near exposed doorbell wiring (e.g., in a basement or attic), visually inspect it for nicks, fraying, or rodent damage.
• Consider a Cover: For outdoor doorbell buttons, a small weatherproof cover can extend its lifespan by protecting it from rain, snow, and direct sunlight.
• Lubricate Plungers (if accessible): For older mechanical chimes, a tiny dab of silicone grease on the chime plungers (if they're sticking) can sometimes restore function. Be sparse and avoid electrical contacts.
• Know Your Transformer Voltage: Before replacing any components, note the voltage output of your existing transformer (e.g., 16V, 24V). New components (chimes, smart doorbells) need to be compatible with this voltage.
• Use the Right Tools: A small Phillips head screwdriver and a basic multimeter are invaluable for doorbell troubleshooting and can prevent damage to components.

When to Call a Professional

While many doorbell issues are DIY-friendly, there are specific situations where calling a licensed electrician is the safest and most efficient choice. If your troubleshooting points to an issue with the high-voltage wiring connected to the transformer, or if you are uncomfortable working with electricity at all, immediately stop and call a professional. Similarly, if you've replaced all the obvious components (button, transformer, chime) and the doorbell still isn't working, or if the wiring issues are complex, requiring extensive fishing of new wires through finished walls, a professional can diagnose and repair the system more efficiently. Any signs of burnt wires, tripped breakers not resetting, or unexplained power outages coinciding with your doorbell issues warrant a professional evaluation to rule out more serious electrical problems. An electrician can quickly trace circuits, replace hard-to-reach components, and ensure your low-voltage system isn't impacting your home's main electrical supply.
